Draw Cross-Band Lines and Boxes

Cross-band controls allow you to draw lines and rectangles through several report bands.

The Report Designer provides the following two cross-band controls:

• The Cross-Band Line control draws vertical lines that can span multiple report bands. You can use this control to emphasize a report area that consists of different bands.
• The Cross-Band Box control draws rectangles through several report bands. You can use this control to encompass a report section that includes multiple band areas.

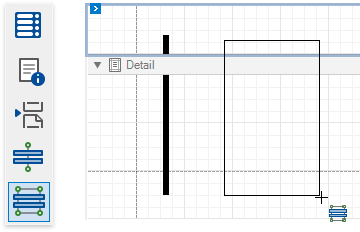

To add a cross-band control to a report, select the corresponding item in the Toolbox and draw a rectangle across required bands.

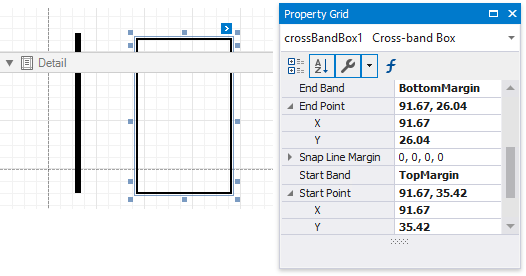

The following properties define a cross-band control’s location in a report:

• Start Band - determines the band from which the control starts to draw;
• Start Point - specifies the exact coordinates (measured in report units) within the start band where the control starts to draw;
• End Band - determines the band where the cross-band control stops to draw;
• End Point - specifies the exact coordinates (measured in report units) within the end band where the control finishes to draw.

The following image illustrates how the Report Explorer reflects cross-band controls:
