Properties Panel
The Properties panel allows you to access and edit the settings of a report and its elements.
This topic consists of the following section.
Select a Report Element
To select a report element and show its settings in the Properties panel, do one of the following.
-

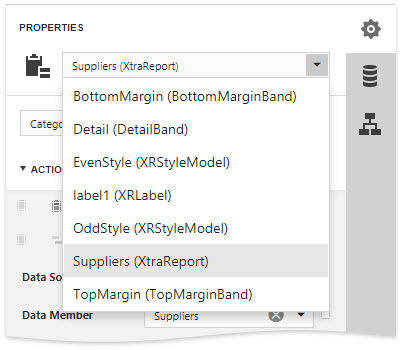

Select a required element in the drop-down list at the top of the Properties panel.
- Click a required element in the Design Surface and invoke the Properties panel by clicking the
button. - Select a required element in the Report Explorer and click the
button.
Set Property Values

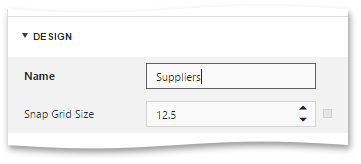

In this panel, the properties of a currently selected report element are arranged in categories. To set a property value, expand the corresponding category by clicking its header and specify the necessary value using the property editor.

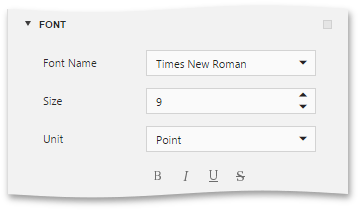

Specific properties can contain nested properties, which can be accessed by clicking the corresponding property header.
Reset Property Values

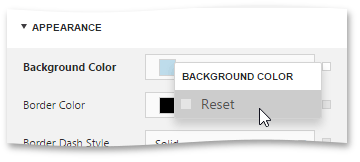

To restore the default value of a property, click the
button to the right of the editor, and in the invoked popup menu, select Reset.
Use Actions
The context-sensitive Actions category at the top of the Properties panel displays the most commonly used actions corresponding to the selected report element or a report.
-

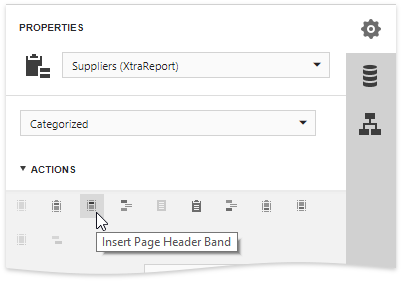

If a report is selected, this category allows you to add new bands of particular types.
-

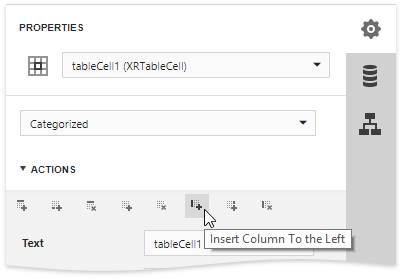

If you select a table element, this category provides actions to manage cells, rows and columns.
-

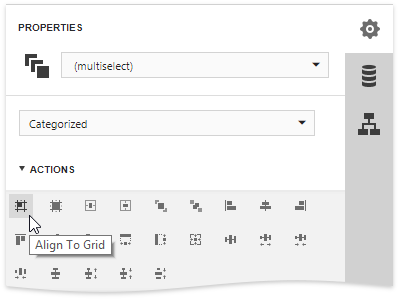

For elements of other types and for multiple selected report elements, you can use actions to align and position these elements (e.g., align and resize elements to the snap grid, specify the horizontal and vertical alignments, etc.)
