Image Settings

When you insert or modify image in an HTML Editor, you can customize the image settings as well.

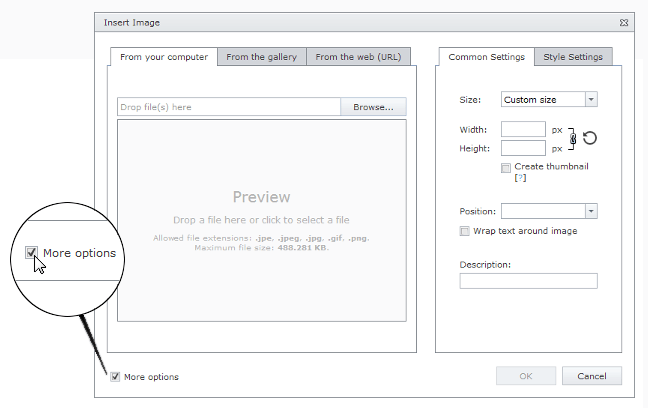

To display the settings section in an image dialog, select the More options check box.

The displayed section contains the following settings, which you can use to customize the image.

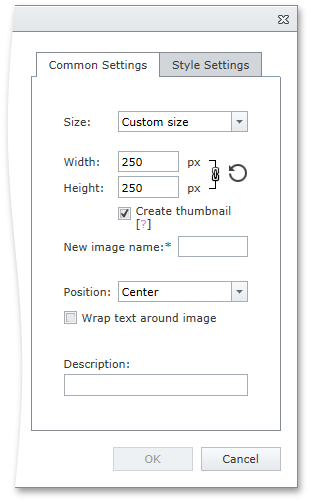

Common Settings Tab

• Size - specifies if the image is a custom or original size.
• Width - specifies the width of the image in pixels (for custom size).
• Height - specifies the height of the image in pixels (for custom size).
• Create thumbnail - specifies if a thumbnail will be created from the image with the specified size (for custom size).
• New image name - specifies a name for the image thumbnail.
• Position - specifies the position of the image.
• Wrap text around image - specifies whether text should be wrapped around the image.
• Description - specifies the image description.

Style Settings Tab

• Margin top - specifies the image top margin in pixels.
• Margin bottom - specifies the image bottom margin in pixels.
• Margin left - specifies the image left margin in pixels.
• Margin right - specifies the image right margin in pixels.
• Border width - specifies the width of the image border in pixels.
• Border color - specifies the color of the image border.
• Border style - specifies the style of the image border.
• CSS class - specifies the CSS class applied to the image.
