Series Page

Tasks

• Create or remove a series of points.
• Define the series name, visibility and view type.
• Customize additional series options and legend point options.
• Enable and customize the Top N Values feature.

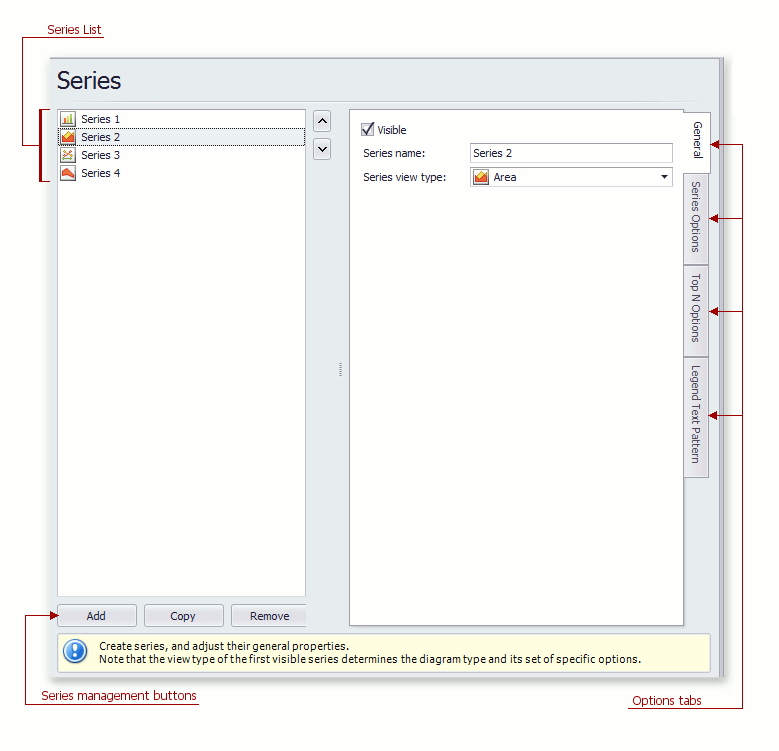

Page Elements

Series List

This list displays all available series. You can click list entries to access properties of the corresponding series. To switch between series, use the ∧ and ∨ buttons.

Series management buttons

Use the Add, Copy and Remove buttons to manage the series collection.

Options tabs

The following tabs are available on this page:

• General

  Choose whether the selected series should be visible, define its name, and select a view type.

• Series Options

  Specifies argument and value scale types, the point sort order, visibility in the legend, whether the legend is checked, and legend text.

• Top N Options

  Specifies whether the Top N Values feature is enabled, and allows you to control this feature’s options.

• Legend Text Pattern

  Specifies the format of values displayed in the chart legend.
