Exporting
The Web Dashboard provides the capability to export an entire dashboard and individual items.
Exporting Dashboards
To export the entire dashboard, click the
button in the dashboard title area and select the required format.

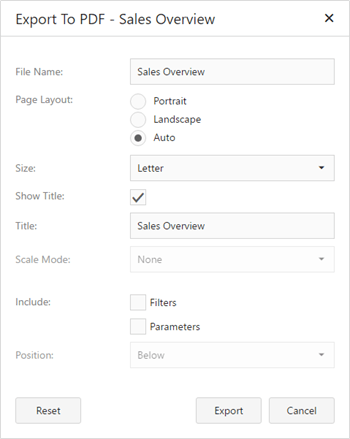

Export to PDF
Invokes a corresponding dialog that allows you to export a dashboard to a PDF file with specific options. The following options are available:
- File Name - Specifies the name of the exported PDF file.
- Page Layout - Specifies the page orientation used to export a dashboard. You can select between Portrait, Landscape and Auto. Note that in the Auto mode, page orientation is selected automatically depending on the horizontal and vertical sizes of a dashboard.
- Size - Specifies the standard paper size (for instance, Letter or A4).
- Show Title - Specifies whether or not to apply the dashboard title to the exported document title.
- Title - Specifies the title of the exported document.
-
Scale Mode - Specifies the mode for scaling when exporting a dashboard.
[!NOTE] Note that this option is in effect when Page Layout is set to a value different from Auto.
-
**Include Filters** - Allows you to include master filter values to the exported document. -
**Include Parameters** - Allows you to include parameter values to the exported document. - Position - Specifies the position of the master filter and parameter values in the exported document. You can select between Below and Separate Page.

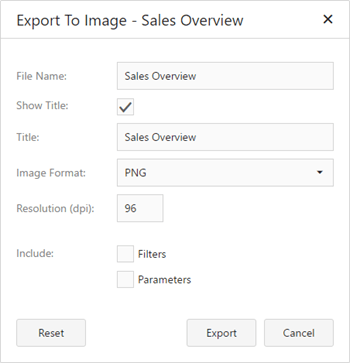

Export to Image
Invokes a corresponding dialog that allows you to export a dashboard to an image in the specified format. The following options are available.
- File Name - Specifies the name of the exported PDF file.
- Show Title - Specifies whether or not to apply the dashboard title to the exported document title.
- Title - Specifies the title of the exported document.
- Image Format - Specifies the image format in which the dashboard is exported. The following formats are available: PNG, JPEG and GIF.
- Resolution (dpi) - Specifies the resolution (in dpi) used to export a dashboard.
-
**Include Filters** - Allows you to include master filter values to the exported document. -
**Include Parameters** - Allows you to include parameter values to the exported document.

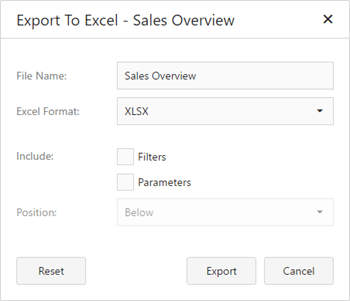

Export to Excel
Invokes a corresponding dialog that allows end-users to export dashboard’s data to the Excel file. The following options are available:
- File Name - Specifies the name of the exported Image file.
- Excel Format - Specifies the Excel workbook format in which the dashboard’s data is exported. You can select between XLSX and XLS.
-
**Include Filters** - Allows you to include master filter values to the exported document. -
**Include Parameters** - Allows you to include parameter values to the exported document. - Position - Specifies the position of the master filter and parameter values in the exported document. You can select between Below and Separate Sheet.
Specify the required options in the invoked dialog and click the Export button to export the dashboard. To reset changes to the default values, click the Reset button.
Exporting Dashboard Items

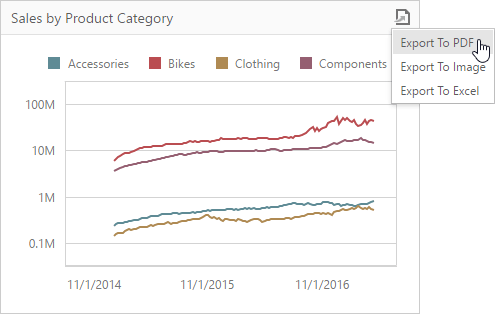

To export a dashboard item, click the button in its caption and choose the required action.
- Export to PDF - Invokes a corresponding dialog that allows you to export a dashboard to a PDF file with specific options.
- Export to Image - Invokes a corresponding dialog that allows you to export a dashboard to image in the specified format.
- Export to Excel - Invokes a corresponding dialog that allows you to export a dashboard item’s data to the Excel workbook or CSV file.
To learn more about exporting specifics of different dashboard items, see the Exporting topic for the required dashboard item.
