Interactivity

This topic describes features that enable interaction between the Pie and other dashboard items. These features include Master Filtering and Drill-Down.

Master Filtering

The Web Dashboard allows you to use any data aware dashboard item as a filter for other dashboard items (Master Filter). To learn more about filtering concepts common to all dashboard items, see the Master Filtering topic.

The Pie dashboard item supports filtering by argument or series values.

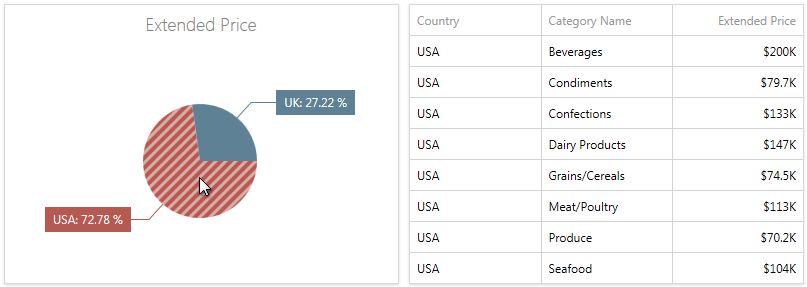

• Filtering by Arguments

  When filtering by arguments is enabled, you can click a pie segment to make other dashboard items only display data related to the selected argument value.



• Filtering by Series

  When filtering by series is enabled, you can click a pie to make other dashboard items display only data related to the selected pie.



To clear the selection in the Master Filter item, use the Clear Master Filter button (the icon) in the pie’s caption area.

Drill-Down

The built-in drill-down capability allows you to change the detail level of data displayed in dashboard items on the fly. To learn more, see Drill-Down.

The Pie dashboard item supports drill-down on argument or series values.

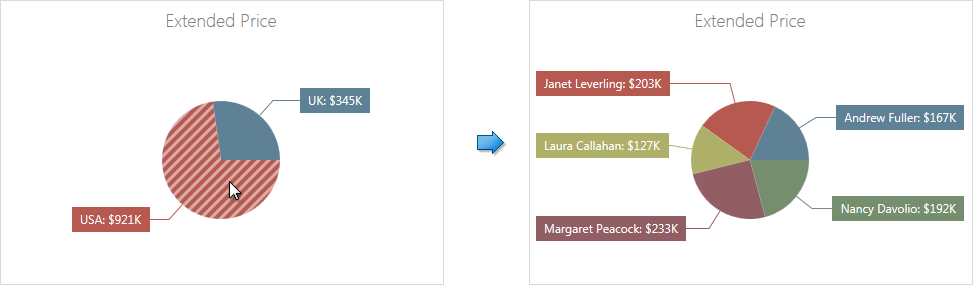

• Drill Down on Arguments

  When drill-down on arguments is enabled, you can click a pie segment to view a detail diagram for the corresponding argument value.



  [!NOTE] When Filtering by Arguments is enabled, you can view the details by clicking a selected pie segment.

• Drill-Down on Series

  When drill-down on a series is enabled, you can click a pie chart to view a detail diagram for the corresponding series value.



  [!NOTE] When Filtering by Series is enabled, you can view the details by clicking a selected pie chart.

To return to the previous detail level (drill up), use the Drill Up button (the icon) in the pie’s caption area.
